The iConverter 2GXM conforms to the Ethernet in the First Mile (EFM) standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The 2GXM provides intelligent, securely managed service demarcation at the customer premises, offering Quality of Service capabilities. The 2GXM features built-in Operations, Administration and Maintenance (OAM) with comprehensive performance monitoring, fault detection and provisioning.

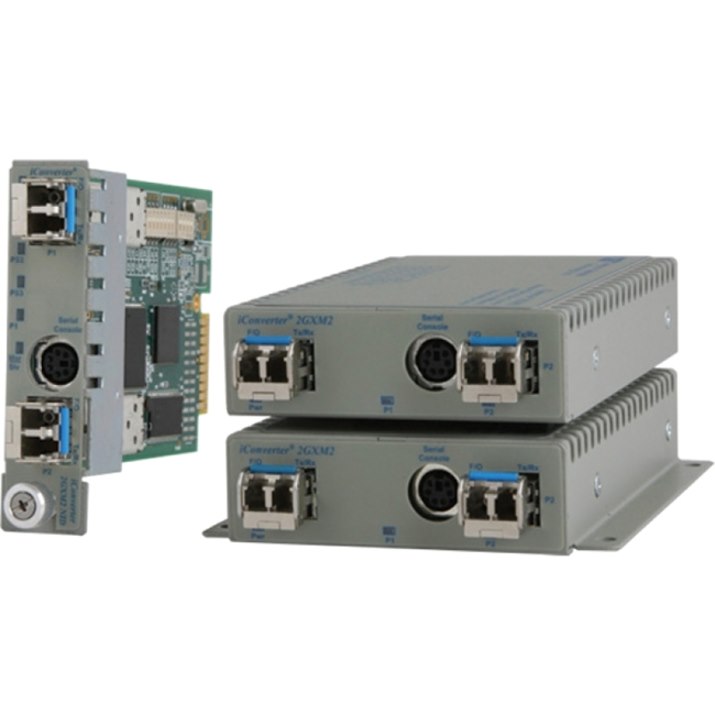

The 2GXM is available as a compact standalone unit or as a chassis plug-in module. The hot-swappable 2GXM plug-in module can be mounted in a 19 or 5-Module chassis with any combination of redundant AC and DC power supplies. It can also be mounted in a 2-Module AC or DC powered chassis, or in a 1-Module chassis with AC or DC power input.
- General Information
- Manufacturer
- Omnitron Systems
- Manufacturer Website Address
- http://www.omnitron-systems.com
- Brand Name
- Omnitron Systems
- Product Line
- iConverter
- Product Type
- Transceiver/Media Converter
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- DVI
- No
- USB
- No
- Parallel Port
- No
- Digital Audio
- No
- Digital Audio/Video
- No
- Management Port
- Yes
- Media & Performance
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Multi-mode
- Maximum Distance Supported
- 4 km
- Fiber Optic Cable Core/Cladding Specification
- 62.5/125 µm
- 100/140 µm
- 9/125 µm
- 50/125 µm
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- SFP
- Number of SFP Slots
- 2
- Network & Communication
- Network Technology
- 1000Base-X
- Power Description
- Input Voltage
- 3.3 V DC
- Physical Characteristics
- Form Factor
- Internal
- Height
- 2.8"
- Width
- 0.9"
- Depth
- 4.5"
- Weight (Approximate)
- 8 oz
- Miscellaneous
- Certifications & Standards
- UL
- CE
- FCC Class A
- IEEE 802.3
- IEEE 802.3ab
- IEEE 802.3u
- IEEE 802.3ah
- IEEE 802.1Q
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin
- United States
