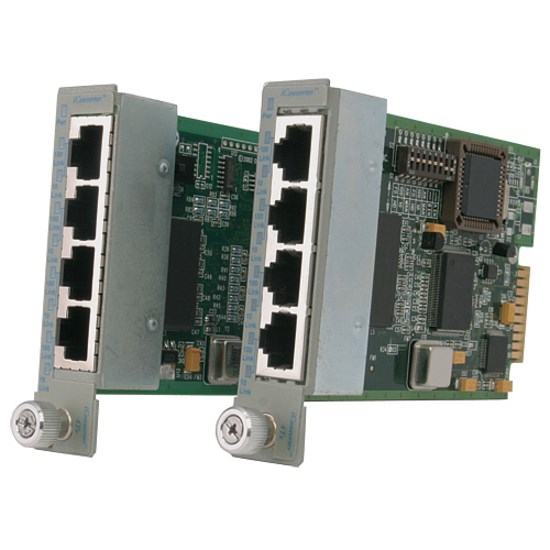

The iConverter 4Tx 10/100 Ethernet Switch module is a member of the managed iConverter product family. The 4Tx provides a compact 4-Port 10/100 Ethernet switch that is expandable across the iConverter 19-Module, 5-Module and 2-Module chassis backplanes, as well as being supported as a standalone switch with the iConverter 1-Module Chassis.
The iConverter 4Tx UTP ports feature 10/100Mbps, Half or Full-Duplex and auto-negotiation with both hardware and software controls. Hardware control is available for two ports while all four ports are under software control for these features.
- General Information
- Manufacturer
- Omnitron Systems
- Manufacturer Website Address
- http://www.omnitron-systems.com
- Brand Name
- Omnitron Systems
- Product Line
- iConverter
- Product Type
- Switching Module
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Application/Usage
- Switching Network
- Interfaces/Ports
- Total Number of Ports
- 4
- Connector Type
- RJ-45
- Interfaces/Ports Details
- 4 x RJ-45 10/100Base-TX Auto-negotiation LAN
- Media & Performance
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Fast Ethernet
- Network Technology
- 10/100Base-TX
- Physical Characteristics
- Form Factor
- Hot-swappable
- Height
- 2.8"
- Width
- 0.9"
- Depth
- 4.5"
- Weight (Approximate)
- 0.50 lb
- Miscellaneous
- Additional Information
- Distance: 100 m
- Wide Temperature
- Compatibility
- iConverter 1-Module Chassis
- iConverter 2-Module Chassis
- iConverter 5-Module Chassis
- iConverter 19-Module Chassis
- Country of Origin
- United States
