- General Information
- Manufacturer
- Kramer Electronics LTD
- Manufacturer Website Address
- http://www.kramerelectronics.com
- Brand Name
- Kramer
- Product Series
- C-DP
- Product Type
- A/V Cable

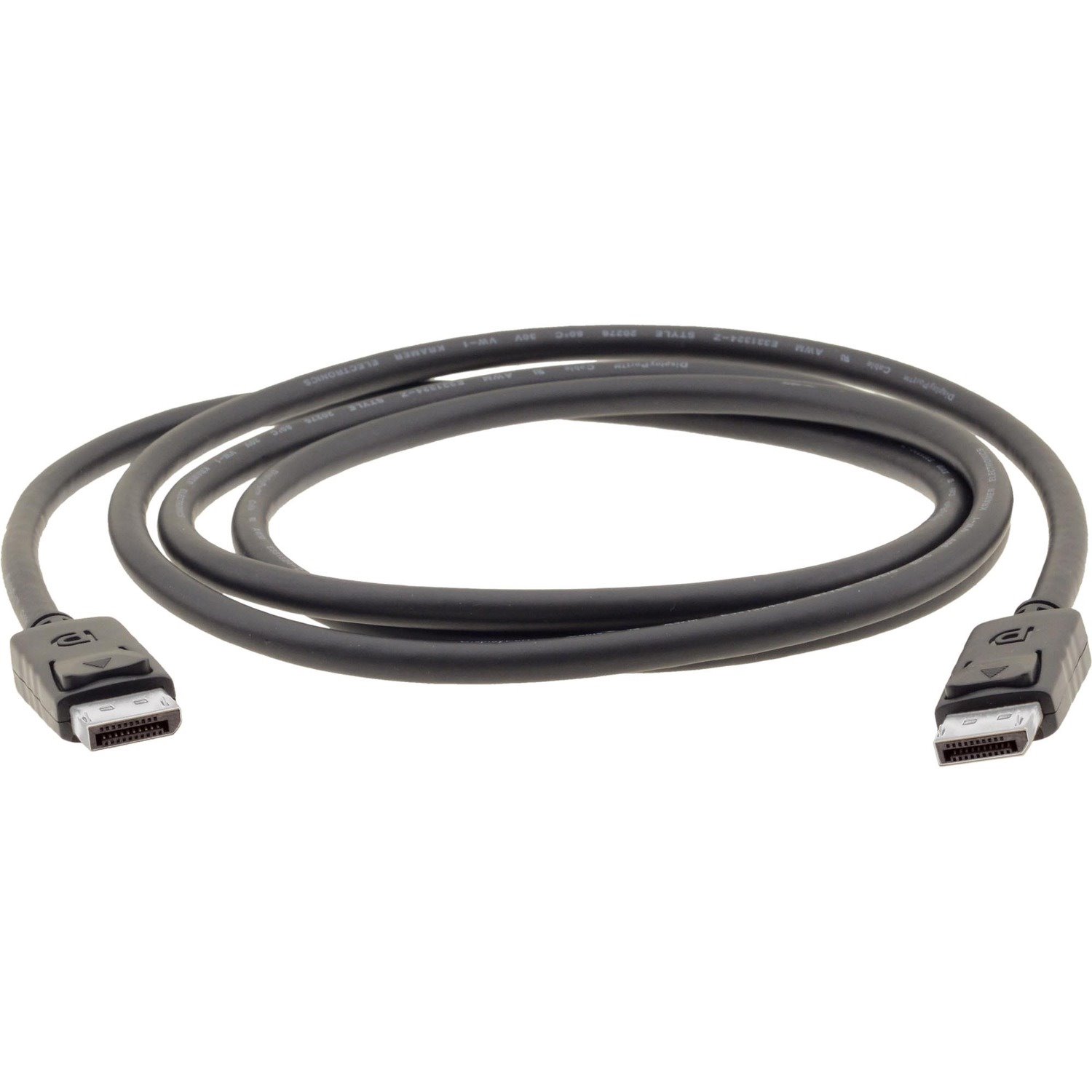

C-DP is a high-resolution DisplayPort cable for video signals up to 4K@60Hz (4:4:4) resolution supporting DisplayPort 1.2 standard. C-DP supports an HBR2 (High Bit Rate 2) bandwidth of up to 21.6 Gbps. The cable is triple shielded for superior noise immunity.
- High-Performance Professional Cable - supports resolutions up to 4K@60Hz (4:4:4) and an HBR2 (High Bit Rate 2) bandwidth of up to 21.6 Gbps.
- Content Protection Support - DPCP (DisplayPort Content Protection) and HDCP 2.2.
- Daisy Chain Multiple Monitors - With MST (Multi-Stream) support.
- Secure Connections - Includes molded DisplayPort connectors with latches.
- Quality Construction - Triple shielded for superior noise immunity.
- Backward Compatibility - Compatible with DisplayPort 1.1.
- Varied Selection of Lengths - Available in versions of 0.9 to 15.0m (3 to 50ft).
- Technical Information
- Cable Type
- DisplayPort
- Cable Length
- 5.91 ft
- Connector Type on First End
- DisplayPort 1.2 Digital Audio/Video - Male
- Connector on First End Details
- 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
- Connector Type on Second End
- DisplayPort 1.2 Digital Audio/Video - Male
- Connector on Second End Details
- 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
- Connector Plating
- Nickel
- Contact Plating
- Gold
- Shielding
- Yes
- Device Supported
- Audio/Video Device
- Monitor
- American Wire Gauge
- 28 AWG
- Data Transfer Rate
- 21.6 Gbit/s
- Features
- DPCP
- HDCP 2.2
- Molded
- Latching Connector
- EMI/RF Protection
- Physical Characteristics
- Product Color
- Black
- Jacket Material
- Polyvinyl Chloride (PVC)
- Miscellaneous
- Country of Origin
- China
