- General Information
- Manufacturer
- ATEN Technology, Inc
- Manufacturer Website Address
- http://www.aten.com/us/en/
- Brand Name
- ATEN
- Product Type
- Video Extender Receiver

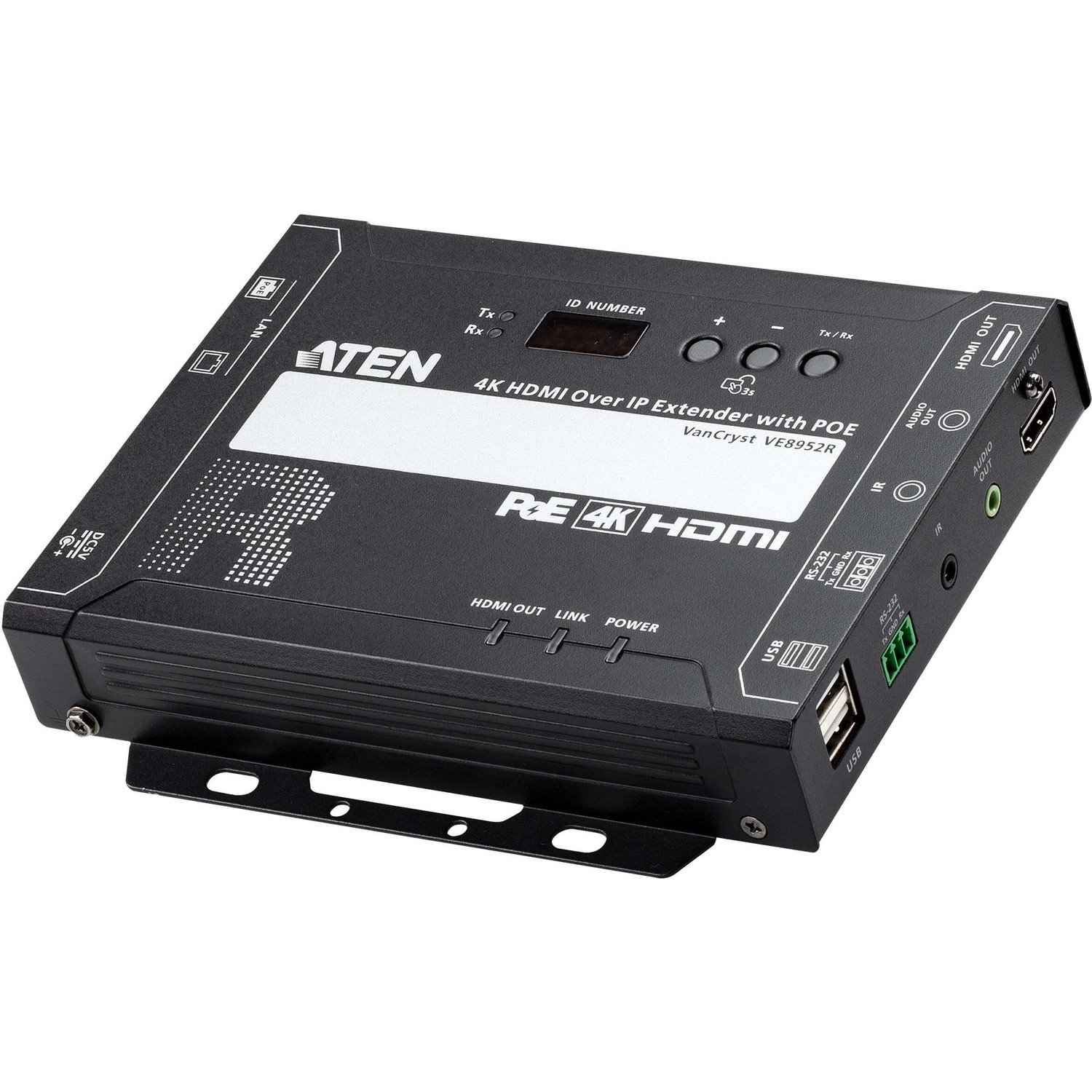

The ATEN VE8952R 4K HDMI over IP Receiver with PoE delivers visually lossless 4K AV signals with low latency over long distance via a standard Gigabit network. It is an effective and easy-to-use solution that directly addresses the challenges system integrators encounter when deploying AV over IP.
Limitless Scalability and FlexibilityFrom a simple point-to-point setup to hundreds of endpoints, it offers flexibility, scalability and multi-functionality in extender, splitter, matrix switch, and video wall applications.
No Complicated IP Setup
Allows you to effortlessly switch input sources via top panel pushbuttons/ID display and offers simple configuration that requires no extensive IT experience.
No Additional Server PCs or Software Required
Effortlessly manage your AV over IP system by logging in to any receiver from the intuitive web GUI with drag and drop operation.
Go Further for Less with Daisy Chaining
Easily expand your AV network coverage without cable clutter or extra network switches while also lowering per-port costs.
Locate Anywhere without the Need for Power Cabling
With PoE support, you can easily place VE8952R units where they are needed the most without having to install additional power cabling and outlets.
Flexible Control with Mobile App
Manage and control any VE8952R with a dedicated app (VE8950/VE8900 Control App) that allows instant preview, monitoring, and switching of video sources to streamline your operations.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Connectivity Technology
- Wired
- Number of Output Devices Supported
- 1
- Maximum Operating Distance
- 328.08 ft
- Video
- Graphics Modes
- 4K UHD
- Maximum Video Resolution
- 4096 x 2160
- Interfaces/Ports

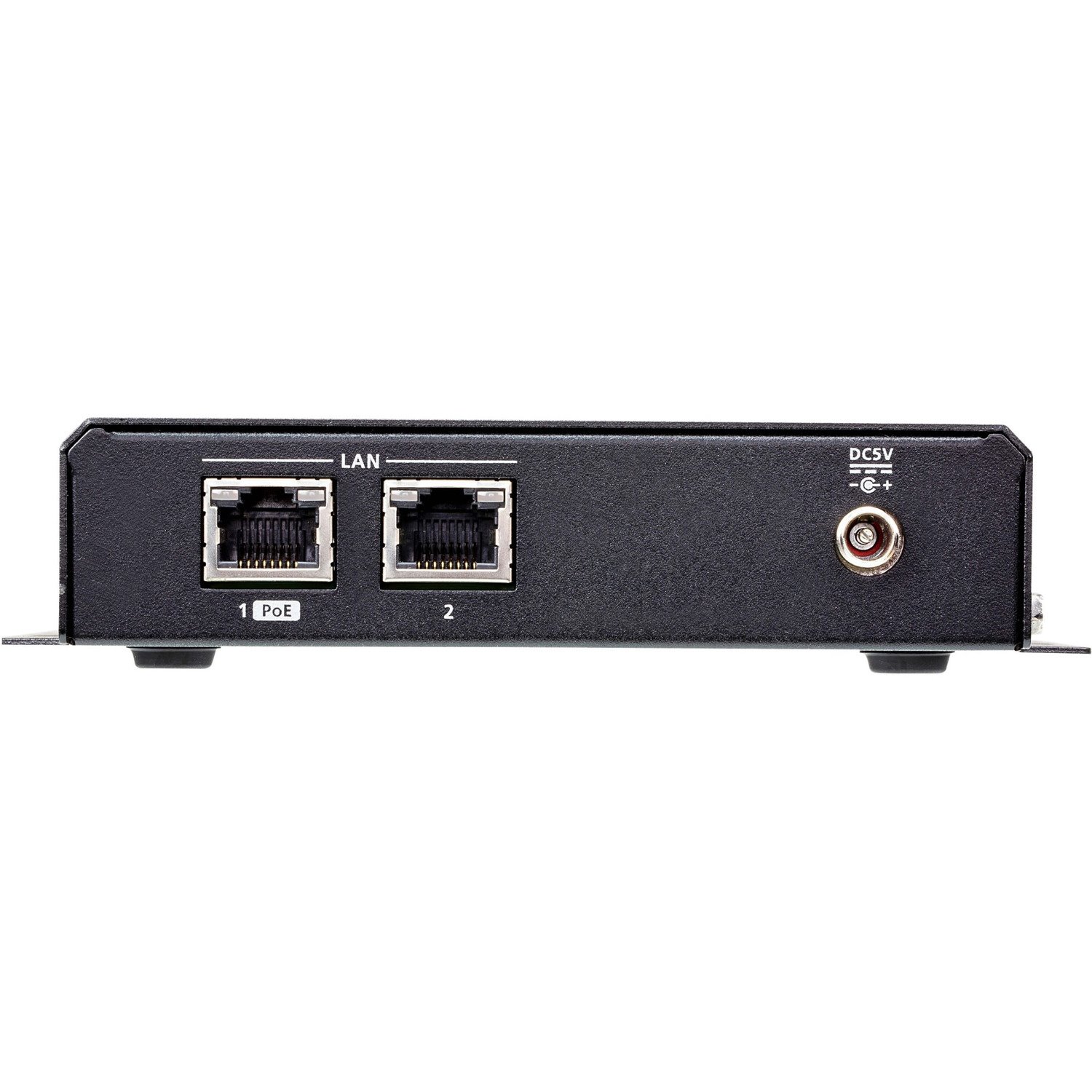

- Network (RJ-45)
- Yes

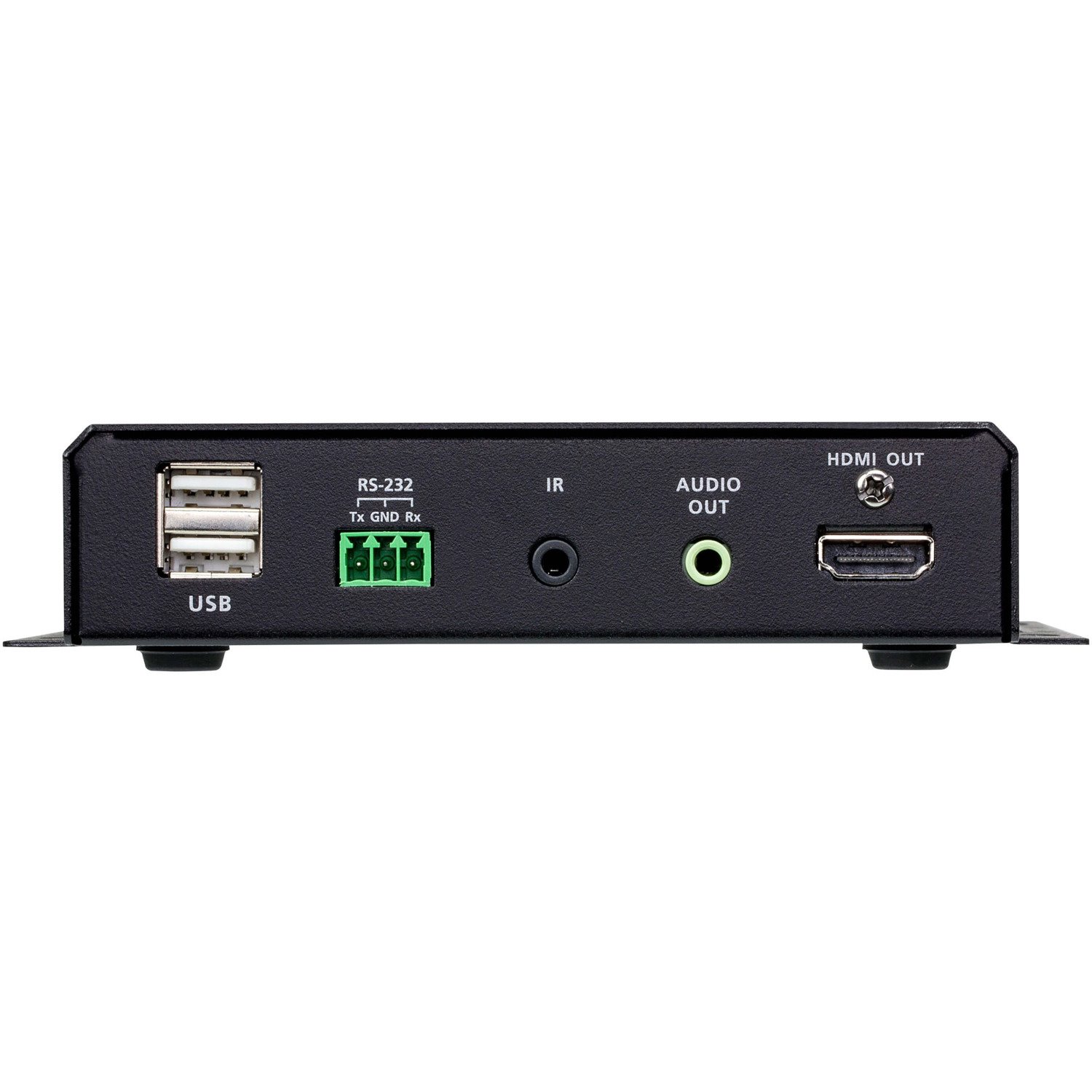

- HDMI Out
- Yes
- USB
- Yes
- Serial Port
- Yes
- Number of Network (RJ-45) Ports
- 2
- Number of USB Ports
- 2
- Number of HDMI Outputs
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Twisted Pair Cable Standard
- Category 6
- Physical Characteristics
- Receiver Height
- 1.18"
- Receiver Width
- 5.78"
- Receiver Depth
- 6.70"
- Form Factor
- Desktop
- Rack-mountable
- Receiver Weight (Approximate)
- 1.50 lb
- Miscellaneous
- Package Contents
- VE8952R 4K HDMI over IP Receiver with PoE
- 1 x RS-232 Terminal Block
- 1 x Power Adapter
- 4 x Foot Pads
- 1 x User Instructions
